Camera ITS tests

This page provides a comprehensive list of the tests under the Camera Image Test Suite (ITS), which is part of the Android Compatibility Test Suite (CTS) Verifier. ITS tests are functional tests, meaning that they don't measure image quality, but that all of the advertised camera functions are working as expected. This document lets developers and testers understand what the individual tests do and how to debug test failures.

Camera ITS gates tests by required camera properties, API level, and media performance class (MPC) level. For API level, ITS uses ro.product.first_api_level to gate tests added in a specific API level that test for negative user experiences for functionality in lower API levels. ITS uses ro.vendor.api_level to gate tests for features added in a specific API level that require new hardware capability. If ro.odm.build.media_performance_class is defined for a device, ITS requires specific tests to be run depending on the MPC level.

Tests are grouped by scene as follows:

scene0: Capture metadata, jitter, gyroscope, vibration
scene1: Exposure, sensitivity, EV compensation, YUV vs JPEG/RAW
scene2: Face detection, tests requiring color scenes or complete darkness
scene3: Edge enhancement, lens movement
scene4: Aspect ratio, cropping, field-of-view
scene5: Lens shading
scene6: Zoom
scene_extensions: Camera extensions
sensor_fusion: Camera/gyroscope timing offset

See individual sections for a description of each scene.

scene0

Scene0 tests require no specific scene information. However, the phone must be stationary for gyroscope and vibration testing.

test_burst_capture

Verifies that the entire capture pipeline can keep up with the speed of fullsize capture and CPU time.

APIs tested:

android.hardware.camera2.CameraMetadata#REQUEST_AVAILABLE_CAPABILITIES_BURST_CAPTURE

Pass: Captures a burst of full size images and the camera is fast enough to avoid timeout.

test_capture_result_dump

Tests that a capture result is returned from a manual capture and then dumps it.

APIs tested:

android.hardware.camera2.CaptureResult

Pass: Completes capture and dumps the capture results.

test_gyro_bias

Tests if the gyro has stable output when the device is stationary. Data is plotted as an average of 20 data points.

APIs tested:

Pass: The gyro reading's delta is less than 0.01 over time.


test_jitter

Measures jitter in camera timestamps.

APIs tested:

Pass: There's at least a 30 ms delta between frames.

test_jitter_plot.png (Note the small y-axis range. Jitter is actually small in this plot.)

test_metadata

Tests the validity of metadata entries. Looks at capture results and at the camera characteristics objects. This test uses auto_capture_request exposure and gain values because image content isn't important.

APIs tested:

Pass: Hardware level, rollingShutterSkew, frameDuration tags, timestampSource, croppingType, blackLevelPattern, pixel_pitch, FoV, hyperfocal distance are present and have valid values.

test_param_sensitivity_burst

Tests that the android.sensor.sensitivity parameter is applied properly in burst. Inspects the output metadata only.

APIs tested:

Pass: Output data has an error tolerance of less than 0.2%.

test_read_write

Tests that the device writes the correct exposure and gain values by reading back the capture metadata.

APIs tested:

Pass: Read and write values match across all shots.

test_sensor_events

Tests that device queries and prints out sensor events for devices that advertise sensor fusion support. The sensors expected are accelerometer, gyroscope, and magnetometer. This test only works if the screen is on, meaning the device isn't in standby mode.

APIs tested:

Pass: Events for each sensor are received.

test_solid_color_test_pattern

Tests that solid color test patterns are generated properly for camera muting. If camera muting is supported, solid color test patterns must be supported. If camera muting is not supported, solid color test patterns are only tested if the capability is advertised.

If RAW images are supported, color assignment is tested as well. The colors tested are black, white, red, blue, and green. For cameras that don't support RAW images, only black is tested.

APIs tested:

Pass: Solid test patterns supported are the correct color and there is low variance in the image.

test_test_pattern

Tests the android.sensor.testPatternMode parameter to capture frames for each valid test pattern and checks that the frames are generated correctly for solid colors and color bars. This test includes the following steps:

Captures images for all supported test patterns.
Performs a simple correctness check for solid color test pattern and color bars.

APIs tested:

Pass: Supported test patterns are generated correctly.

test_test_patterns_2


test_tonemap_curve

Tests conversion of test pattern from RAW to YUV with linear tonemap. This test requires android.sensor.testPatternMode = 2 (COLOR_BARS) to generate a perfect image pattern for tonemap conversion. Ensures pipeline has proper color outputs with linear tonemap and ideal image input (relies on test_test_patterns).

APIs tested:

Pass: The YUV and the RAW look similar to each other.

test_tonemap_curve_raw_2



test_unified_timestamp

Tests if image and motion sensor events are in the same time domain.

APIs tested:

Pass: Motion timestamps are between the two image timestamps.

test_vibration_restriction

Tests if the device's vibration is functioning as expected.

APIs tested:

Pass: The device doesn't vibrate when muted by the camera audio restriction API.

scene1

scene1 is a gray chart. The gray chart must cover the center 30% of the camera field of view. The gray chart is expected to challenge 3A (auto exposure, auto white balance, auto focus) moderately as the center region has no features. However, the capture request specifies the entire scene which includes sufficient features for 3A to converge.

RFoV cameras can be tested in the WFoV or the RFoV test rig. If a RFoV camera is tested in the WFoV test rig, the chart is scaled by ⅔ to ensure some boundaries for the gray chart in the FoV to help 3A converge. For more detailed descriptions of the camera test rigs, see Camera ITS-in-a-box.

scene1

scene1: Full size chart (left). ⅔ scaled chart (right).

test_3a

Tests the convergence of 3A with a moderately challenging target.

APIs tested:

Pass: 3A converges and the returned 3A values are valid.

test_ae_af

Tests the 3A auto exposure (AE) and auto focus (AF) algorithms individually.

APIs tested:

Pass: 3A converges and the returned 3A values are legal.

test_ae_precapture_trigger

Tests the AE state machine when using the precapture trigger. Captures five manual requests with AE disabled. The last request has an AE precapture trigger, which should be ignored because AE is disabled.

APIs tested:

Pass: AE converges.

test_auto_vs_manual

Tests that captured auto and manual shots look the same.

APIs tested:

Pass: Manual white balance gains and transform reported in each capture result match with the auto white balance estimate from camera's 3A algorithm.

test_auto_vs_manual_auto


test_auto_vs_manual_wb


test_auto_vs_manual_manual_wb_tm


test_black_white

Tests that the device produces full black and white images. Takes two captures, the first with extremely low gain and short exposure, which results in a black photo, and the second with extremely high gain and long exposure, which results in a white photo.

APIs tested:

Pass: Produces black and white images. Saturated channels of white images have RGB values of [255, 255, 255] with a margin of error of less than 1% difference.


test_black_white_black.jpg	test_black_white_white.jpg

test_black_white_plot_means


test_burst_sameness_manual

Takes 5 bursts of 50 images with manual capture setting and checks that they're all identical. This test can be used to identify if there are sporadic frames that are processed differently or have artifacts.

APIs tested:

Pass: Images are identical visually and in RGB values.

Fail: Shows a spike or drop of the RGB average chart at the beginning of each burst

Tolerance is 3% for first_API_level < 30
Tolerance is 2% for first_API_level >= 30

test_burst_sameness_manual_mean


test_burst_sameness_manual_plot_means


test_capture_result

Tests that valid data comes back in CaptureResult objects. Does an auto, manual, and auto capture.

APIs tested:

Pass: Metadata is valid for all captures and the manual settings don't leak into the second auto capture. Plots out the lens shading correction for the captures.

test_capture_result_plot_lsc_auto_ch0


test_crop_region_raw

Tests that the RAW streams aren't croppable.

APIs tested:

Pass: YUV images get center-cropped but not RAW images.

test_crop_region_raw_comp_raw_crop


test_crop_region_raw_comp_raw_full


test_crop_region_raw_comp_yuv_crop


test_crop_region_raw_yuv_full


test_crop_regions

Tests that crop regions work. Takes a full image and creates patches of 5 different regions (corners and center.) Takes images with crop set for the 5 regions. Compares the patch and the crop image values.

APIs tested:

Pass: Image of the cropped region matches the patch that corresponds to the crop image.

test_dng_noise_model

Verifies that the DNG raw model parameters are correct. The plot depicts the measured variance of a center patch of the grey card in raw shots captured over a range of sensitivities, and compares these values with the variance that is expected at each sensitivity by the DNG noise model in the camera HAL (based on the O,S parameters returned in the capture result objects). For a more details on the DNG noise model, download the following document on the DNG Noise Model.

APIs tested:

Pass: DNG raw model parameters are correct. Expected RGB values match that of the actual RGB values measured.

test_dng_noise_model_plog


test_ev_compensation_advanced

Tests that the exposure value (EV) compensation is applied. The test increases exposure in eight steps, and checks measured brightness versus expected brightness. Expected values are calculated from image brightness of image with no EV compensation applied and the expected value will saturate if the calculated values exceed the actual image value range. Test fails if the expected values and measured values don't match or images overexpose within five steps.

APIs tested:

Pass: Images show increasing exposure without overexposing within five steps.

test_ev_compensation_advanced_plot_means


test_ev_compensation_basic

Tests that the EV compensation is applied using a range created with CONTROL_AE_COMPENSATION_STEP. Eight frames are captured at each compensation value.

APIs tested:

Pass: Captures increase in luma with increased EV compensation setting, and the eight frames captured for each EV compensation setting have stable luma values.

test_ev_compensation_basic


test_exposure

Tests that a constant exposure is achieved as ISO and exposure time vary. Takes a series of shots that have ISO and exposure time chosen to balance each other. Results should have the same brightness, but over the sequence the image should get noisier. Verifies sample pixel mean values are close to each other. Ensures that the images aren't clamped to 0 or 1 (which would make them look like flat lines). The test can also be run with RAW images by setting the debug flag in your configuration file.

APIs tested:

Pass: Images have the same brightness, but get noisier with higher ISO. RGB planes are flat when the value of ISO*exposure is constant over the tested gain space.

test_exposure_plot_means



test_exposure_mult=1.00.jpg	test_exposure_mult=64.00.jpg

test_jpeg

Tests that converted YUV images and device JPEG images look the same. Test takes the center 10% of the image and calculates the RGB value, and verifies that they match.

APIs tested:

android.graphics.ImageFormat#JPEG

Pass: The average RGB difference between each image is less than 3%.


test_jpeg_fmt=jpg.jpg	test_jpeg=fmt=yuv.jpg

test_latching

Tests that settings (exposure and gain) latch on the right frame for FULL and LEVEL_3 cameras. Takes a series of shots using back-to-back requests, varying the capture request parameters between shots. Checks that the images have the expected properties.

APIs tested:

android.hardware.camera2.CameraCharacteristics#INFO_SUPPORTED_HARDWARE_LEVEL

Pass: Images [2, 3, 6, 8, 10, 12, 13] have increased ISO or exposure and show up with higher RGB means on test_latching_plot_means.png.


test_latching_i=00.jpg	test_latching_i=01.jpg	test_latching_i=02.jpg

test_latching_i=03.jpg	test_latching_i=04.jpg	test_latching_i=05.jpg

test_latching_i=06.jpg	test_latching_i=07.jpg	test_latching_i=08.jpg

test_latching_i=09.jpg	test_latching_i=10.jpg	test_latching_i=11.jpg


test_latching_plot_means


test_linearity

Tests that device processing can be inverted to linear pixels. Captures a sequence of shots with the device pointed at a uniform target.

APIs tested:

Pass: R, G, B values must increase linearly with increased sensitivity.

test_linearity_plot_means


test_locked_burst

Tests 3A lock and YUV burst (using auto setting). This test is designed to pass even on limited devices that don't have MANUAL_SENSOR or PER_FRAME_CONTROLS. The test checks YUV image consistency while the frame rate check is in CTS.

APIs tested:

Pass: Captures look consistent.

test_locked_burst_frame0


test_locked_burst_frame1


test_locked_burst_frame2


test_param_color_correction

Tests that the android.colorCorrection.* parameters are applied when set. Takes shots with different transform and gain values, and tests that they look correspondingly different. The transform and gains are chosen to make the output increasingly red or blue. Uses a linear tonemap. Tone mapping is a technique used in image processing to map one set of colors to another to approximate the appearance of high-dynamic-range images in a medium that has a more limited dynamic range.

APIs tested:

Pass: R and B values boost according to transformation.

test_param_color_correction_plot_means


*The x-axis is the capture requests: 0 = unity, 1=red boost, 2= blue boost

test_param_color_correction_req=0


test_param_color_correctness_req=1


test_param_color_correction_req=2


test_param_exposure_time

Tests that the android.sensor.exposureTime parameter is applied.

APIs tested:

android.hardware.camera2.CaptureResult#SENSOR_EXPOSURE_TIME

Pass: Each shot is brighter than the previous shot.

test_param_exposure_time_frame0


test_param_exposure_time_plot


test_param_flash_mode

Tests that the android.flash.mode parameter is applied. Manually sets the exposure to be on the dark side, so that it is obvious whether the flash fired or not, and uses a linear tonemap. Checks the center with the tile image to see if there's a large gradient that's created to verify whether the flash fired.

APIs tested:

Pass: The center of the tile image has a large gradient meaning that the flash fired.

test_param_flash_mode_1


test_param_flash_mode_1_tile


test_param_flash_mode_2


test_param_flash_mode_2_tile


test_param_noise_reduction

Tests that the android.noiseReduction.mode parameter is applied correctly when set. Captures images with the camera dimly lit. Uses a high analog gain to ensure the captured image is noisy. Captures three images, for NR off, "fast", and "high quality". Also captures an image with low gain and NR off, and uses the variance of this as the baseline. The higher the SNR (Signal to Noise Ratio), the better the image quality.

APIs tested:

android.hardware.camera2.CaptureRequest#NOISE_REDUCTION_MODE

Pass: SNR varies with different noise reduction modes and behaves similarly as the graph below.

test_param_noise_reduction_plot_SNRs


0: OFF, 1: FAST, 2: HQ, 3: MIN , 4: ZSL

test_param_noise_reduction_high_gain_nr=0


test_param_noise_reduction_high_gain_nr=1


test_param_noise_reduction_high_gain_nr=2


test_param_noise_reduction_high_gain_nr=3


test_param_noise_reduction_low_gain


test_param_sensitivity

Tests that the android.sensor.sensitivity parameter is applied. The test increases the sensitivity in 5 steps with fixed exposure for each shot.

APIs tested:

android.hardware.camera2.CaptureRequest#SENSOR_SENSITIVITY

Pass: RGB means of center 10% gets brighter with increased sensitivity.

test_param_sensitivity_iso=0055


test_param_sensitivity_iso=1819


test_param_sensitivity_iso=3583


test_param_sensitivity_iso=5347


test_param_sensitivity_iso=7111


test_param_sensitivity_plot


test_param_shading_mode

Tests that the android.shading.mode parameter is applied.

APIs tested:

Pass: Shading modes are switched and the lens shading maps are modified as expected.

test_param_shading_mode_ls_maps_mode_0_loop_0


test_param_shading_mode_ls_maps_mode_1_loop_0


test_param_shading_mode_ls_maps_mode_2_loop_0


test_param_tonemap_mode

Tests that the android.tonemap.mode parameter is applied. Applies different tonemap curves to each R, G, B channel, and checks that the output images are modified as expected. This test consists of two tests, test1 and test2.

APIs tested:

Pass:

test1: Both images have a linear tonemap, but n=1 has a steeper gradient. The G (green) channel is brighter for the n=1 image.
test2: Same tonemap, but different length. Images are the same.


test_param_tonemap_mode_n=0.jpg	test_param_tonemap_mode_n=1.jpg

test_post_raw_sensitivity_boost

Checks post RAW sensitivity boost. Captures a set of RAW and YUV images with different sensitivity, posts RAW sensitivity boost combination and checks if the output pixel mean matches request settings.

APIs tested:

Pass: RAW images get darker as boost increases while YUV images stay constant in brightness

test_post_raw_sensitivity_boost_raw_s=3583_boost=0100


test_post_raw_sensitivity_boost_raw_s=1792_boost=0200


test_post_raw_sensitivity_boost_raw_s=0896_boost=0400


test_post_raw_sensitivity_boost_raw_s=0448_boost=0800


test_post_raw_sensitivity_boost_raw_s=0224_boost=1600


test_post_raw_sensitivity_boost_raw_s=0112_boost=3199


test_post_raw_sensitivity_boost_raw_plot_means


test_post_raw_sensitivity_boost_yuv_s=0112_boost=3199


test_post_raw_sensitivity_boost_yuv_s=0448_boost=0800


test_post_raw_sensitivity_boost_yuv_s=0896_boost=0400


test_post_raw_sensitivity_boost_yuv_s=1792_boost=0200


test_post_raw_sensitivity_boost_yuv_s=3585_boost=0100


test_post_raw_sensitivity_boost_yuv_plot_means


test_raw_burst_sensitivity

Captures a set of raw images with increasing gains and measures the noise. Captures raw-only, in a burst.

APIs tested:

Pass: Each shot is noisier than the previous shot, as the gain is increasing.

Uses the variance of the center stats grid cell.

test_raw_burst_sensitivity_variance


test_raw_exposure

Captures a set of raw images with increasing exposure time and measures the pixel values.

APIs tested:

Pass: Increasing the ISO (gain) makes the pixels more sensitive to light, so the plot moves towards the left.

test_raw_exposure_s=55


(10⁰ is 1 ms, 10¹ is 10 ms, 10⁻¹ is 0.1 ms)

test_raw_exposure_s=132


test_raw_exposure_s=209


test_raw_exposure_s=286


test_raw_exposure_s=363


test_raw_exposure_s=440


test_raw_sensitivity

Captures a set of raw images with increasing sensitivities and measures the noise (variance) in the center 10% of image. Tests that each shot is noisier than the previous one.

APIs tested:

Pass: Variance increases with each shot.

test_raw_sensitivity_variance


test_reprocess_noise_reduction

Tests that android.noiseReduction.mode is applied for reprocessing requests. Captures reprocessed images with the camera dimly lit. Uses a high analog gain to ensure the capture image is noisy. Captures three reprocessed images, for NR off, "fast", and "high quality". Captures a reprocessed image with low gain and NR off, and uses the variance of this as the baseline.

APIs tested:

android.hardware.camera2.CaptureResult#NOISE_REDUCTION_MODE

Pass: FAST >= OFF, HQ >= FAST, HQ >> OFF

Typical SNR vs NR_MODE plot

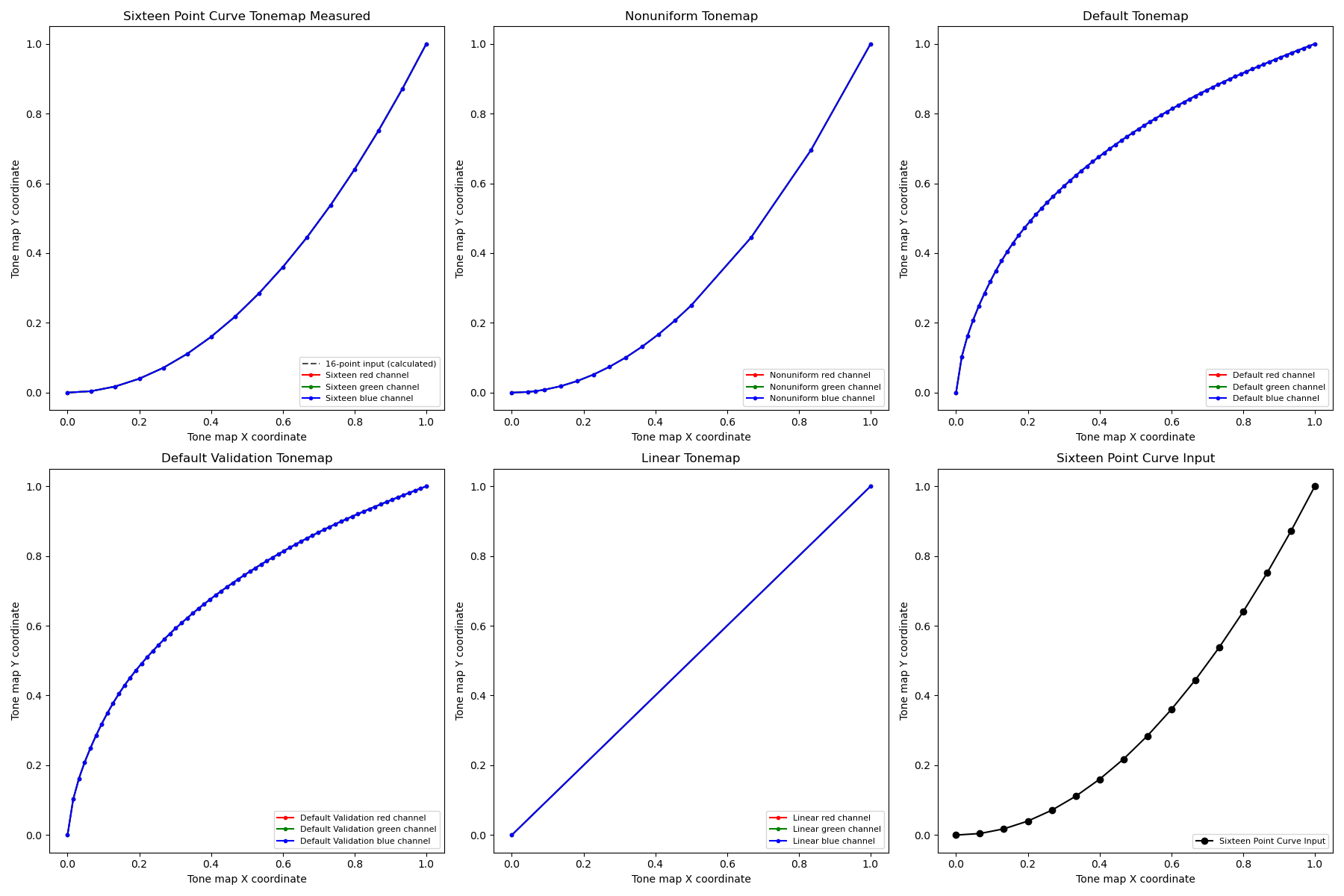

test_tonemap_sequence

Tests a sequence of shots with different tonemap curves. Captures 3 manual shots with a linear tonemap. Captures 3 manual shots with default tonemap. Computes the delta between each consecutive frame pair.

APIs tested:

Pass: There are 3 identical frames followed by a different set of 3 identical frames.

test_tonemap_sequence_i=0


test_tonemap_sequence_i=1


test_tonemap_sequence_i=2


test_tonemap_sequence_i=3


test_tonemap_sequence_i=4


test_tonemap_sequence_i=5


test_yuv_jpeg_all

Tests that all reported sizes and formats for image capture work. Uses a manual request with a linear tonemap so that the YUV and JPEG look the same when converted by the image_processing_utils module. Images aren't saved by default, but can be saved by enabling debug_mode.

APIs tested:

Pass: All image centers have a max RMS (root-mean-square value of a signal) difference in RGB converted images with 3% of highest resolution YUV image.

test_yuv_jpeg_all


test_yuv_plus_dng

Tests that the reported sizes and formats for image capture work.

APIs tested:

android.hardware.camera2.CameraMetadata#REQUEST_AVAILABLE_CAPABILITIES_RAW

Pass: Test completes and returns the images requested.

test_yuv_plus_dng


test_yuv_plus_jpeg

Tests capturing a single frame as both YUV and JPEG outputs. Uses a manual request with a linear tonemap so that the YUV and JPEG look the same when converted by the image_processing_utils module.

APIs tested:

Pass: YUV and JPEG images are similar and have less than 1% RMS (root-mean-square value of a signal) difference.


test_yuv_plus_jpg_jpg.jpg	test_yuv_plus_jpeg_yuv.jpg

test_yuv_plus_raw

Tests capturing a single frame as both RAW/RAW10/RAW12 and YUV outputs if supported. Uses a manual request with linear tonemap so raw and YUV are expected to be the same. Compares RGB converted images' center 10% RGB values. Logsandroid.shading.mode.

APIs tested:

Pass: YUV and raw images are similar and have less than 3.5% RMS (root-mean-square value of a signal) difference.


test_yuv_plus_raw_shading=1_raw.jpg	test_yuv_plus_raw_shading=1_yuv.jpg

scene2_a

scene2_a has three faces with a gray background and neutral clothing. The faces are chosen to have a wide range of skin tones. The chart must have the correct orientation for face detection to work optimally.

scene2_a

test_auto_flash

Tests that auto-flash is triggered in a dark scene. Verifies that auto-flash is fired by checking that the center of the tile image has a large gradient. To trigger auto-flash, the tablet and lights in the test rig must be turned off. The tablet is turned off by the test, and the lights can be turned off automatically with the Arduino controller. The scene must be completely dark for the test to work correctly. As such, the rear tablet opening must be completely covered by the scene tablet, and the front opening must be covered by an aperture and the DUT phone to block stray light from entering the rig.

APIs tested:

Pass: The center of the tile image has a large gradient meaning that auto-flash fired.

test_autoframing

Tests the camera device's autoframing behavior. Performs a large zoom such that none of the faces in the scene are visible, enables the autoframing mode by setting AUTOFRAMING in CaptureRequest to True, and verifies whether all the faces in the original scene can be detected when the state converges (that is, when AUTOFRAMING_STATE in CaptureResult is set to AUTOFRAMING_STATE_CONVERGED).

APIs tested:

Pass: All three faces are detected.

test_display_p3

Tests Display P3 capture in JPEG using the ColorSpaceProfiles API. Tests that the captured JPEG has an appropriate ICC profile in its header, and that the image contains colors outside of the sRGB gamut.

APIs tested:

Pass: The JPEG contains a Display P3 ICC profile and colors outside the sRGB gamut.

test_effects

Captures frame for supported camera effects and checks if they are generated correctly. The test only checks effects OFF and MONO, but saves images for all supported effects.

APIs tested:

Pass: Captures the scene image with effects OFF and a monochrome image with effects set to MONO.

test_effects_MONO


test_format_combos

Tests different combinations of output formats.

APIs tested:

Pass: All the combinations are successfully captured.

test_jpeg_quality

Tests the camera JPEG compression quality. Step JPEG qualities through android.jpeg.quality and ensures Quantization Tables change correctly.

APIs tested:

Pass: Quantization matrix decreases with quality increase. (Matrix represents the division factor.)

test_jpeg_quality

Pixel 4 rear camera luma/chroma DQT matrix averages vs JPEG quality

test_jpeg_quality failed

Failed test example

Note that for very low quality images (jpeg.quality < 50), there is no increase in compression in the quantization matrix.

test_num_faces

Tests face detection.

APIs tested:

Pass: Finds three faces.

test_num_faces_fd_mode_1


test_preview_min_frame_rate

Tests that the preview frame rate decreases correctly in a dark scene. For this test to work correctly, the lights in the test rig must be turned off by the controller or manually by the test operator.

APIs tested:

Pass: The preview frame rate is at the minimum of the requested frame rate range, and the variation between frames is less than the absolute tolerance set in the test.

test_reprocess_uv_swap

Tests that YUV reprocessing doesn't swap the U and V planes. This is detected by calculating the sum of absolute differences (SAD) between the reprocessed image and a non-reprocessed capture. If swapping the output U and V planes of the reprocessed capture results in an increased SAD, then the output is assumed to have the correct U and V planes.

APIs tested:

Pass: The U and V planes aren't swapped.

test_reprocess_uv_swap


scene2_b

test_num_faces

Tests face detection with increased skin tone diversity in face scenes.

APIs tested:

Pass: Finds 3 faces.

test_num_faces_fd_mode_1


test_yuv_jpeg_capture_sameness

Captures two images using the largest common YUV and JPEG formats with the same aspect ratio as the largest JPEG format not exceeding a resolution of 1920x1440. Sets jpeg.quality to 100 and captures a dual surface request. Converts both images to RGB arrays and calculates the 3D root mean square (RMS) difference between the two images.

APIs tested:

Pass: YUV and JPEG images are similar and have less than 1% RMS (root-mean-square value of a signal) difference.

scene2_c

test_num_faces

Tests face detection with increased skin tone diversity in face scenes.

APIs tested:

Pass: Finds 3 faces.

test_num_faces_fd_mode_1


test_jpeg_capture_perf_class

Tests JPEG capture latency for the S performance class as specified in section 2.2.7.2 Camera in the CDD.

Pass: MUST have camera2 JPEG capture latency < 1000ms for 1080p resolution as measured by the CTS camera PerformanceTest under ITS lighting conditions (3000K) for both primary cameras.

test_camera_launch_perf_class

Tests camera launch latency for the S performance class as specified section 2.2.7.2 Camera in the CDD.

Pass: MUST have camera2 startup latency (open camera to first preview frame) < 600ms as measured by the CTS camera PerformanceTest under ITS lighting conditions (3000K) for both primary cameras.

scene2_d

test_num_faces

Tests face detection with increased skin tone diversity in face scenes.

APIs tested:

Pass: Finds 3 faces.

scene2_e

test_continuous_picture

50 VGA resolution frames are captured with the capture request first setting android.control.afMode = 4 (CONTINUOUS_PICTURE).

APIs tested:

Pass: 3A system settles by the end of a 50-frame capture.

test_num_faces

Tests face detection with increased skin tone diversity in face scenes.

APIs tested:

Pass: Finds 3 faces.

scene2_f

scene2_f has three faces with a white background and white clothing. The faces have a wide range of skin tones and high contrast with the background.

scene2_f

test_num_faces

Tests face detection with increased skin tone diversity in face scenes.

APIs tested:

Pass: Finds 3 faces.

test_num_faces_fd_mode_1


scene3

Scene3 uses the ISO12233 chart, and most tests use a chart extractor method to find the chart in the scene. For this reason, most of the saved images don't have borders like the images for scenes 1, 2 or 4, but only the chart. The chart must be in the correct orientation for the chart finder to work optimally.

test_3a_consistency

Tests for 3A consistency.

APIs tested:

Pass: 3A converges for exposure, gain, awb (auto white balance), and fd (focus distance) three times within tolerance.

test_edge_enhancement

Tests that the android.edge.mode parameter is applied correctly. Captures non-reprocess images for each edge mode and returns sharpness of the output image and the capture result metadata. Processes a capture request with a given edge mode, sensitivity, exposure time, focus distance, and output surface parameter.

Pass: HQ mode (2) sharper than OFF mode (0). FAST mode (1) sharper than OFF mode. HQ mode sharper or equal to FAST mode.

APIs tested:

android.hardware.camera2.CaptureRequest#EDGE_MODE

Impacted camera parameters:

EDGE_MODE

test_edge_enhancement_edge=0


test_edge_enhancement_edge=1


test_edge_enhancement_edge=2


test_flip_mirror

Tests if image is properly oriented as per CDD section 7.5.2 Front-Facing Camera [C-1-5].

Mirrored, flipped, or rotated images can be identified by the diamond feature near the center.

Pass: Image isn't flipped, mirrored or rotated.

test_flip_mirror_scene_patch


test_landscape_to_portrait

Tests if the landscape to portrait override functions correctly for landscape-oriented sensors.

APIs tested:

Pass: The test is able to locate a chart with the expected rotation (0 degrees when the landscape to portrait override is disabled, 90 degrees when enabled).

test_landscape_to_portrait


test_lens_movement_reporting

Tests if the lens movement flag is properly reported. Captures a burst of 24 images with the first 12 frames at the optimum focus distance (as found by 3A) and the last 12 frames at the minimum focus distance. Around frame 12, the lens moves causing the sharpness to drop. The sharpness eventually stabilizes as the lens moves to the final position. The lens movement flag should be asserted in all frames where the sharpness is intermediate to sharpness in the first few frames with the lens stationary at optimum focal distance, and the final few frames where the lens is stationary in the minimum focal distance. The exact frame the lens moves isn't important: what is checked is that the movement flag is asserted when the lens is moving.

APIs tested:

Pass: Lens movement flag is True in the frame with sharpness change.

Fail mechanisms:

lens_moving: True (android.hardware.camera2.CaptureResult#LENS_STATE = 1) in test_log.DEBUG is asserted only in frames where sharpness isn't changing.
Frames with lens_moving: False (android.hardware.camera2.CaptureResult#LENS_STATE = 0) in test_log.DEBUG has a sharpness difference compared to the first few frames at optimum focal distance or the last few frames at minimum focus distance.

test_reprocess_edge_enhancement

Tests if supported reprocess methods for edge enhancement work properly. Processes a capture request with a given reprocess edge mode and compares different modes to capture with reprocess edge modes disabled.

APIs tested:

Pass: Sharpness for the different edge modes is correct. HQ (mode 2) is sharper than OFF (mode 0), and improvement between different modes is similar.

test_reprocess_edge_enhancement_plot


scene4

Scene4 consists of a black circle on a white background inside a square.

scene4

test_aspect_ratio_and_crop

Tests if images are distorted or cropped unexpectedly in the image pipeline. Takes pictures of a circle over all formats. Verifies the circle isn't distorted, the circle doesn't move from the center of image, and the circle doesn't change size incorrectly with different aspect ratios or resolutions.

APIs tested:

Pass: Images aren't stretched, the center of images don't differ by more than 3%, and the maximum possible FoV (field of view) is preserved.

Fail mechanisms:

The circle in the captured image is distorted by the processing pipeline.
Lower resolution image is double cropped in the image pipeline creating different FoV between high and low resolution images.
The circle in the captured image is cropped due to an extreme aspect ratio capture request reducing the height or width of the image.
The circle in the captured image has a reflection in the center and doesn't appear fully filled.

test_multi_camera_alignment

Tests the camera calibration parameters related to camera positioning for multi-camera systems. Using the multi-camera physical sub-cameras, takes a picture with one of the physical cameras. Finds the circle center. Projects the circle center to the world coordinates for each camera. Compares the difference between the cameras' circle centers in world coordinates. Reprojects the world coordinate back to pixel coordinates and compares against originals as a validity check. Compares the circle sizes checking if the focal lengths of the cameras are different.

APIs tested:

Pass: Circle centers and sizes are as expected in projected images compared to captured images using camera calibration data and focal lengths.

Fail mechanisms:

LENS_INTRINSIC_CALIBRATION, LENS_POSE_TRANSLATION, or LENS_POSE_ROTATION are design values and not actual calibration data.
The camera system isn't appropriate for the test setup. For example, testing a wide and an ultra-wide camera system with the RFoV test rig. For more information, see Camera ITS-in-a-box FAQ1.

test_preview_aspect_ratio_and_crop

Similar to the test_aspect_ratio_and_crop test for still captures, this test checks the supported preview formats to ensure the preview frames aren't stretched or cropped inappropriately. Verifies that the aspect ratio of the circle doesn't change, the cropped images keep the circle in center of the frame, and the circle size doesn't change for a constant format or with different resolutions (field of view check).

APIs tested:

Pass: Images aren't stretched, the center of images don't differ by more than 3%, and the maximum possible FoV (field of view) is preserved.

test_preview_stabilization_fov

Checks the supported preview sizes to ensure the FoV is cropped appropriately. The test captures two videos, one with preview stabilization ON, and another with preview stabilization OFF. A representative frame is selected from each video, and analyzed to ensure that the FoV changes in the two videos are within spec.

APIs tested:

Pass: The circle aspect ratio remains about constant, the center location of the circle remains stable, and the size of circle changes no more that 20%.

test_video_aspect_ratio_and_crop

Takes videos of a circle inside of a square over all video formats. Extracts the key frames, and verifies the aspect ratio of the circle doesn't change, the cropped images keep the circle in center, and the circle size doesn't change for a constant format or with different resolution (field of view check).

APIs tested:

Pass: Video frames aren't stretched, the center of frames don't differ by more than 3%, and the maximum possible FoV (field of view) is preserved.

scene5

Scene5 requires a uniformly lit gray scene. This is accomplished by a diffuser placed over the camera lens. We recommend the following diffuser: www.edmundoptics.com/optics/window-diffusers/optical-diffusers/opal-diffusing-glass/46168.

To prepare the scene, attach a diffuser in front of the camera and point the camera to a lighting source of around 2000 lux. Images captured for scene5 require diffuse lighting with no features evident. The following is a sample image:

scene5

scene5 capture

test_lens_shading_and_color_uniformity

Tests that the lens shading correction is applied appropriately, and color of a monochrome uniform scene is evenly distributed. Performs this test on a YUV frame with auto 3A. Lens shading is evaluated based on the y channel. Measures the average y value for each sample block specified, and determines pass or fail by comparing with the center y value. The color uniformity test is evaluated in r/g and b/g space.

APIs tested:

Pass: At the specified radius of the image, the variance of r/g and b/g value must be less than 20% to pass the test.

scene6

Scene6 is a grid of small circles with a square in one corner to indicate orientation. The small circles are needed to test zoom function over a large range.

scene6

test_in_sensor_zoom

Tests the behavior of the camera in-sensor zoom feature, which produces cropped RAW images.

With the stream use case set to CROPPED_RAW, the test takes two captures over the zoom range, a full field of view (FoV) RAW image and a cropped RAW image. The test converts the images to RGB arrays, downscales the full-sized cropped RAW image to the size reported by SCALER_RAW_CROP_REGION, and calculates the 3D root mean square (RMS) difference between the two images.

APIs tested:

Pass: The 3D root mean square (RMS) difference between the downscaled cropped RAW image and the full FoV RAW image is less than 1%.

test_zoom

Tests the camera zoom behavior. Takes captures over the zoom range and checks if the circles get bigger as the camera zooms in.

APIs tested:

Pass: Relative size of captured circle is accurate against requested zoom ratio to ensure camera is zooming correctly.

test_zoom

test_zoom to find the contour of the circle closest to the center.

test_low_latency_zoom

Tests the camera low latency zoom behavior. Takes captures over the zoom range with android.control.settingsOverride = 1 (SETTINGS_OVERRIDE_ZOOM), and checks if the circles in the output images match the zoom ratios in the capture metadata.

APIs tested:

Pass: Relative size of captured circle is accurate against the zoom ratio result metadata.

test_preview_video_zoom_match

Tests that while recording and zooming, video preview and video output display and record the same output. Calculates the size of the circle closest to the center at different zoom ratios and checks whether the size of the circle increases as the zoom ratio increases.

APIs tested:

Pass: Relative size of captured circle is accurate against requested zoom ratio in video and preview.





scene_extensions

The scene_extensions tests are for camera extensions and must use Camera ITS-in-a-Box, as they require precise control of the testing environment.

scene_hdr

The scene_hdr scene consists of a portrait on the left and a low-contrast QR code on the right.

scene_hdr

test_hdr_extension

Tests the HDR extension. Takes captures with and without the extension enabled, and checks if the extension makes the QR code more detectable.

APIs tested:

Pass: The HDR extension reduces the number of contrast changes needed to detect the QR code or reduces the gradient across the QR code.

scene_night

The scene_night scene consists of a white circle with four smaller circles inside of it, all against a black background. The smaller circle in the top right corner is darker than the others to indicate orientation.

scene_night

test_night_extension

Tests the Night extension. Takes captures with and without the extension enabled, and checks for the following:

The capture with the Night extension enabled takes longer.
The capture with the Night extension enabled is brighter or has scene artifacts with an improved appearance.

APIs tested:

Pass: Compared to a capture without the Night extension enabled, a capture with the Night extension enabled takes at least 0.5 seconds longer. The capture must be at least 10% brighter, or the gray dots in the scene must be 20 pixel values lower than the surrounding circle's center.

sensor_fusion

Sensor fusion tests require specific phone movement in front of a checkerboard pattern. For optimum results, ensure the test chart is mounted flat. Charts that aren't flat affect the rotation calculations for many of the tests. The sensor_fusion tests can be automated with the Sensor Fusion Box.

checkerboard

Image of checkerboard

test_multi_camera_frame_sync

Tests that frame timestamps captured by logical camera are within 10 ms by computing angles of squares within the checkerboard to determine the timestamp.

APIs tested:

Pass: Angle between images from each camera doesn't change appreciably as phone is rotated.

test_preview_stabilization

Tests that stabilized preview video rotates less than gyroscope.

APIs tested:

Pass: Max angle rotation over frames is less than 70% of gyroscope rotation.

The following are sample videos with and without stabilization.

Sample video with stabilization
Sample video without stabilization

test_sensor_fusion

Tests the timestamp difference between the camera and the gyroscope for AR and VR applications. Phone is rotated 90 degrees 10 times in front of the checkerboard pattern. Motion is about 2 s round trip. This test is skipped if no gyroscope is included or if the timestamp source REALTIME parameter is not enabled.

The test_sensor_fusion test generates a number of plots. The two most important plots for debugging are:

test_sensor_fusion_gyro_events: Shows the gyroscope events for the phone during the test. Movement in the x and y direction implies the phone isn't securely mounted on the mounting plate, reducing the probability of the test passing. The number of cycles in the plot depends on the write speed for saving frames.

test_sensor_fusion_gyro_events
test_sensor_fusion_plot_rotations: Shows the alignment of the gyroscope and camera events. This plot must show matching movement between camera and gyroscope to +/-1 ms.

test_sensor_fusion_plot_rotations

APIs tested:

Pass: Camera and gyroscope timestamps' offset is less than 1 ms as per CDD section 7.3.9 High Fidelity Sensors [C-2-14].

Fail mechanisms:

Offset error: The camera-gyroscope offset isn't correctly calibrated to within +/-1 ms.
Frame drops: The pipeline isn't fast enough to capture 200 frames consecutively.
Socket errors: adb can't reliably connect to the DUT long enough to execute the test.
The chart isn't mounted flat. The plot test_sensor_fusion_plot_rotations has frames where the gyroscope and camera rotation vary considerably as the camera rotates through the parts of the chart that aren't flat.
The camera isn't mounted flat. The plot test_sensor_fusion_gyro_events shows movement in the X and Y planes. This failure is more common in front-facing cameras as the rear camera often has a raised bump to the rest of the phone body, creating a tilt when mounting the rear of the phone to the mounting plate.

test_video_stabilization

Tests that stabilized video rotates less than gyroscope.

APIs tested:

Pass: Max angle rotation over frames is less than 60% of gyroscope rotation.

The following are sample videos with and without stabilization.

Sample video with stabilization
Sample video without stabilization

test_led_snapshot

Tests that the LED snapshots don't saturate or tint the image.

This test adds a lighting controller to the sensor fusion box to control the lights. With the lights set to OFF, the test takes a capture with the AUTO_FLASH mode set to ON. During this capture, the test runs a precapture sequence with the aePrecapture trigger set to START, and sets the capture intent to Preview to take the capture with flash.

Because the capture has a distinctive hotspot due to flash, the test computes the flash image mean of the entire capture and verifies whether the value is within the (68, 102) range. To check if the image is reasonably white-balanced, the test calculates the R/G and B/G ratios and verifies whether the ratios are within 0.95 and 1.05.

APIs tested:

Pass: The R/G and B/G ratios are within 0.95 and 1.05. The flash image mean is within the (68, 102) range.
