MTE bootloader support

Android 13 introduces an ABI for user-space to communicate the requested MTE mode to the bootloader. You can use this to enable MTE on devices that have hardware support but don't ship with MTE enabled by default, or to disable MTE on devices that do ship with it.

Bootloader support

To support this ABI, your bootloader needs to read the misc_memtag_message (defined in bootloader_message.h) from the misc partition. If a valid misc_memtag_message is found (MISC_MEMTAG_MAGIC_HEADER matches, and the version number is supported), the bootloader computes as follows:

memtag = (default_memtag && !(misc.memtag_mode & MISC_MEMTAG_MODE_MEMTAG_OFF)) ||
   misc.memtag_mode & MISC_MEMTAG_MODE_MEMTAG ||
   misc.memtag_mode & MISC_MEMTAG_MODE_MEMTAG_ONCE

memtag_kernel = misc.memtag_mode & MISC_MEMTAG_MODE_MEMTAG_KERNEL ||
   misc.memtag_mode & MISC_MEMTAG_MODE_MEMTAG_KERNEL_ONCE

default_memtag is the default memtag on or off setting for the SKU. If memtag is true, the bootloader sets up MTE tag reservation, enables tag checks in the lower exception levels, and communicates the tag reserved region to the kernel with the devicetree (DT). If memtag is false, the bootloader appends arm64.nomte to the kernel command line.

If memtag_kernel is true, the bootloader appends kasan=on to the kernel command line. Otherwise, it appends kasan=off.

Bootloader must clear MISC_MEMTAG_MODE_MEMTAG_ONCE and MISC_MEMTAG_MODE_MEMTAG_KERNEL_ONCE on every boot.

If the bootloader supports fastboot oem mte, the on argument should set the MISC_MEMTAG_MODE_{MEMTAG, MEMTAG_ONLY, MEMTAG_OFF} flags to (1, 0, 0), and the off argument should set them to (0, 0, 1), while preserving the other flags.

Configure your product to build the mtectrl binary for userspace support. And then set the ro.arm64.memtag.bootctl_supported system property to indicate to the system that your bootloader supports the memtag message.

User interface

When the ro.arm64.memtag.bootctl_supported property is set, the Reboot with MTE option in the Developer Options menu lets you reboot once with MTE enabled. The target audience for this is app developers that want to test their apps with MTE.

MTE developer option

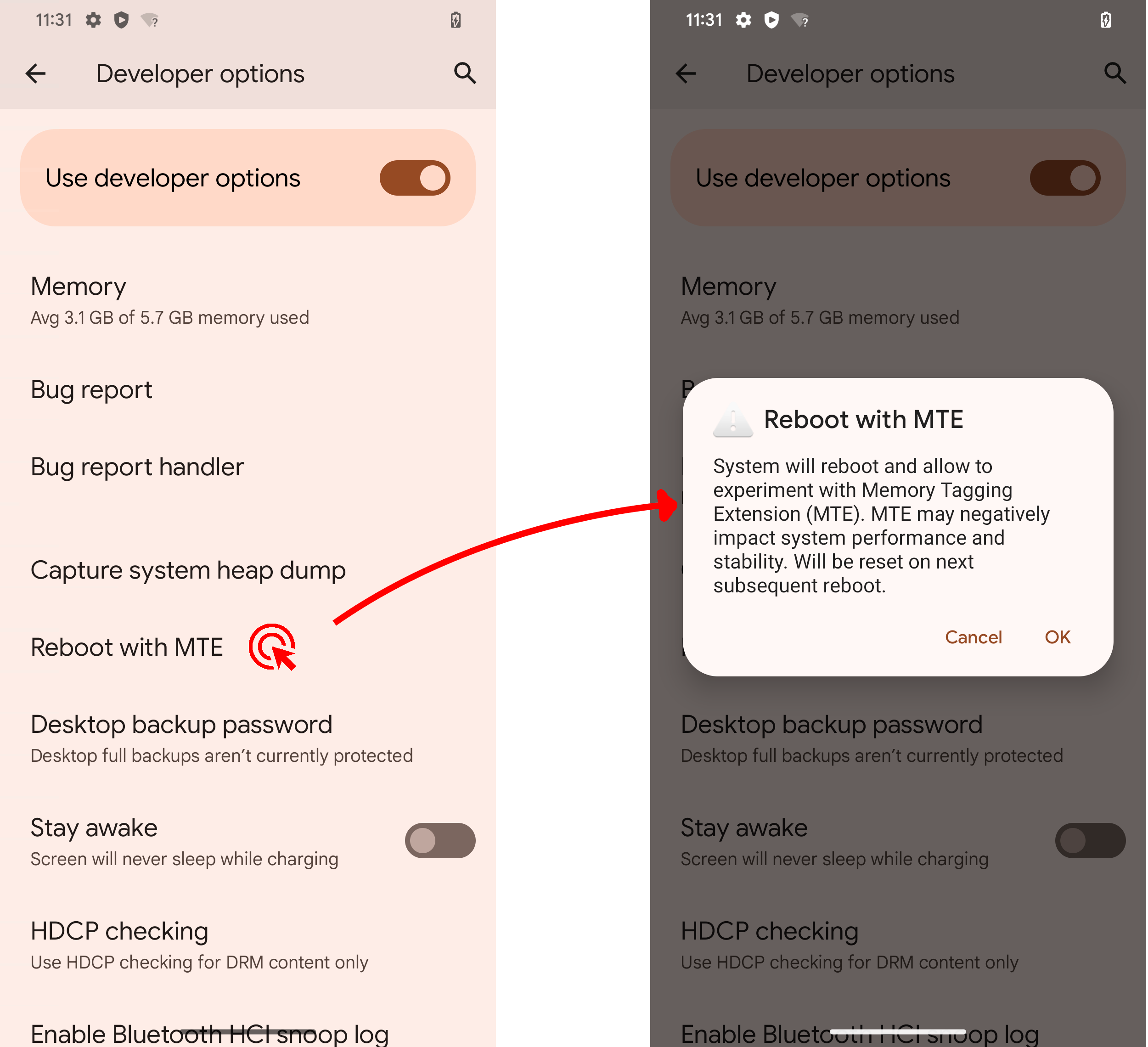

Figure 1. MTE developer option.

System property

For advanced use, the system property arm64.memtag.bootctl can take a comma-separated list of the following values:

  • memtag persistently enables user-space MTE (set MISC_MEMTAG_MODE_MEMTAG).
  • memtag-once enables user-space MTE once (set MISC_MEMTAG_MODE_MEMTAG_ONCE).
  • memtag-kernel enables kernel-space MTE (set MISC_MEMTAG_MODE_MEMTAG_KERNEL).
  • memtag-kernel-once enables kernel-space MTE once (set MISC_MEMTAG_MODE_MEMTAG_KERNEL_ONCE).
  • memtag-off disables MTE (set MISC_MEMTAG_MODE_MEMTAG_OFF).

The setting is applied by the bootloader, so reboot the system after you make a change.
