建議您將 API 中提供的所有公開常數與適當的 HAL 常數對應。如要開始這項程序，請找出裝置可在 HAL 中定義多少個具有離散振幅的觸覺波形。以該概念為架構的具體問題如下：在手機中，可以定義多少種單脈衝觸覺效果，且這些效果的振幅差異可供人類感知？這項問題的答案會決定對應方式。
定義 HAL 常數是硬體相關的程序。舉例來說，入門級手機可能只有產生單一觸覺回饋波形的硬體功能。配備更先進硬體元件的裝置可產生更廣泛的離散振幅等級，並可在 HAL 中定義多種觸覺回饋波形。HAL-API 常數對應會採用 HAL 常數 (使用中等振幅做為基準)，然後安排較強或較弱的效果。

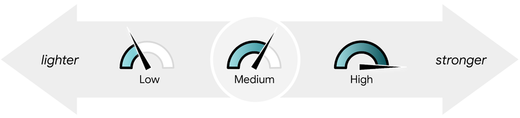

圖 14. 依振幅計算 HAL 常數範圍
定義具有離散振幅的 HAL 常數數量後，就可以根據 HAL 常數數量對應 HAL 和 API 常數。這項對應程序可將單一衝量 API 常數區分為最多三個幅度層級群組。API 常數的區隔方式，是根據伴隨輸入事件的使用者體驗原則。詳情請參閱「觸覺回饋使用者體驗設計」。

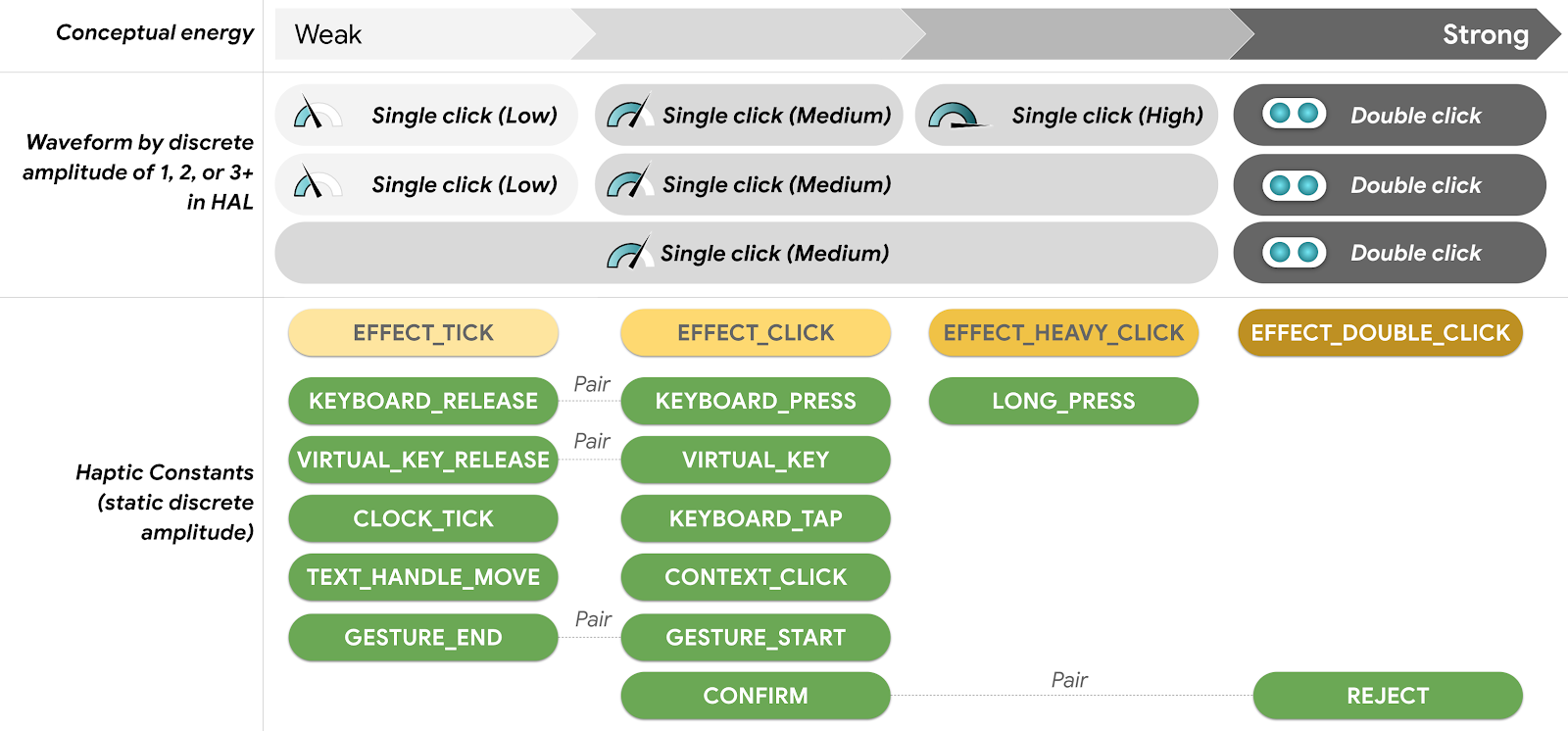

圖 15. HAL-API 常數對應：離散模型
如果裝置僅支援兩個具有離散振幅的 HAL 常數，請考慮合併中等和高振幅 HAL 常數。在實際應用中，這個概念的例子是將 EFFECT_CLICK 和 EFFECT_HEAVY_CLICK 對應至相同的 HAL 常數，也就是中等振幅等級 HAL 常數。如果裝置只支援一個 HAL 常數，且振幅為離散值，建議您將所有三個等級合併為一個。
連續模型
可將具有振幅可擴展性的連續模型套用至定義 HAL 常數。您可以將比例因數 (S) 套用至 HAL 常數 (例如 HAL_H0、HAL_H1)，產生經過縮放的 HAL (HAL_H0 x S)。在本例中，經過縮放的 HAL 會對應至定義 API 常數 (HAL_H0 x S1 = H0S1 = EFFECT_TICK)，如圖 16 所示。透過連續模型的振幅可擴展性，裝置可以儲存少量具有獨特觸覺回饋紋理的 HAL 常數，並透過調整比例因數 (S) 新增振幅變化。裝置製造商可以根據要提供的不同觸覺回饋紋理數量，定義 HAL 常數的數量。

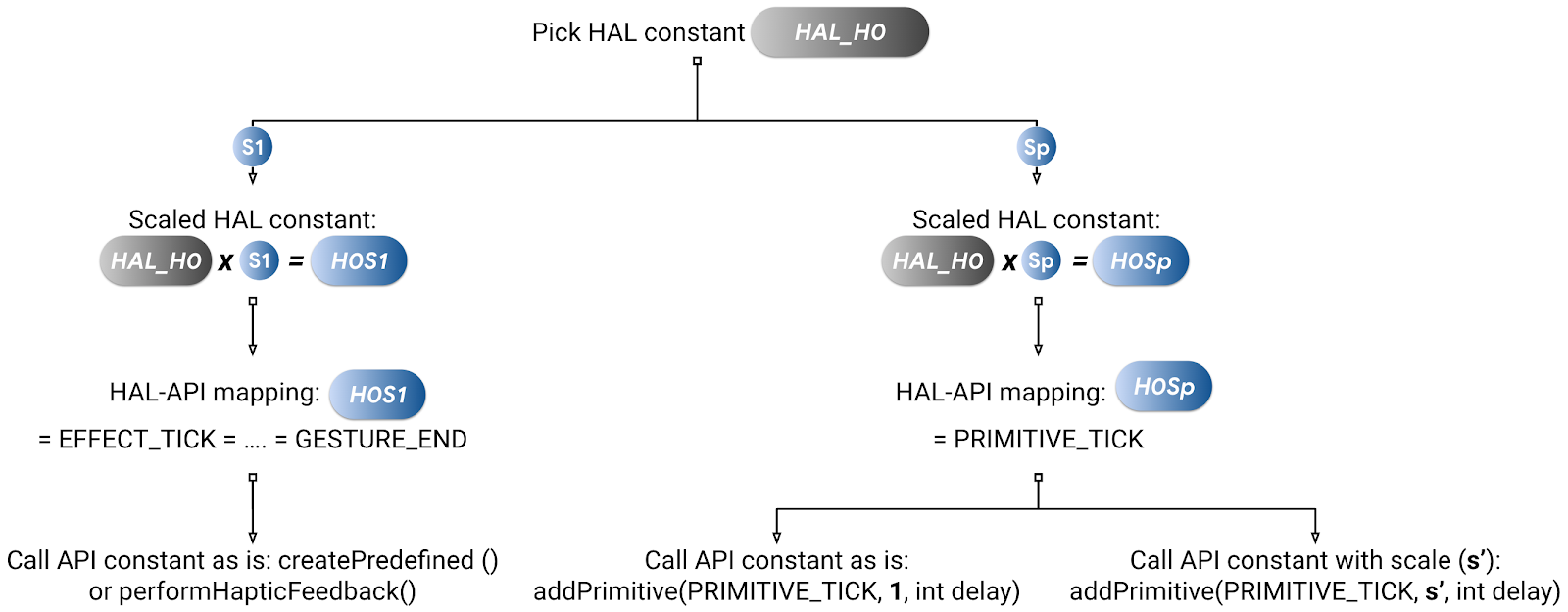

圖 16. 根據紋理 (HAL_H0) 和振幅縮放比例 (S) 設定 HAL 常數範圍

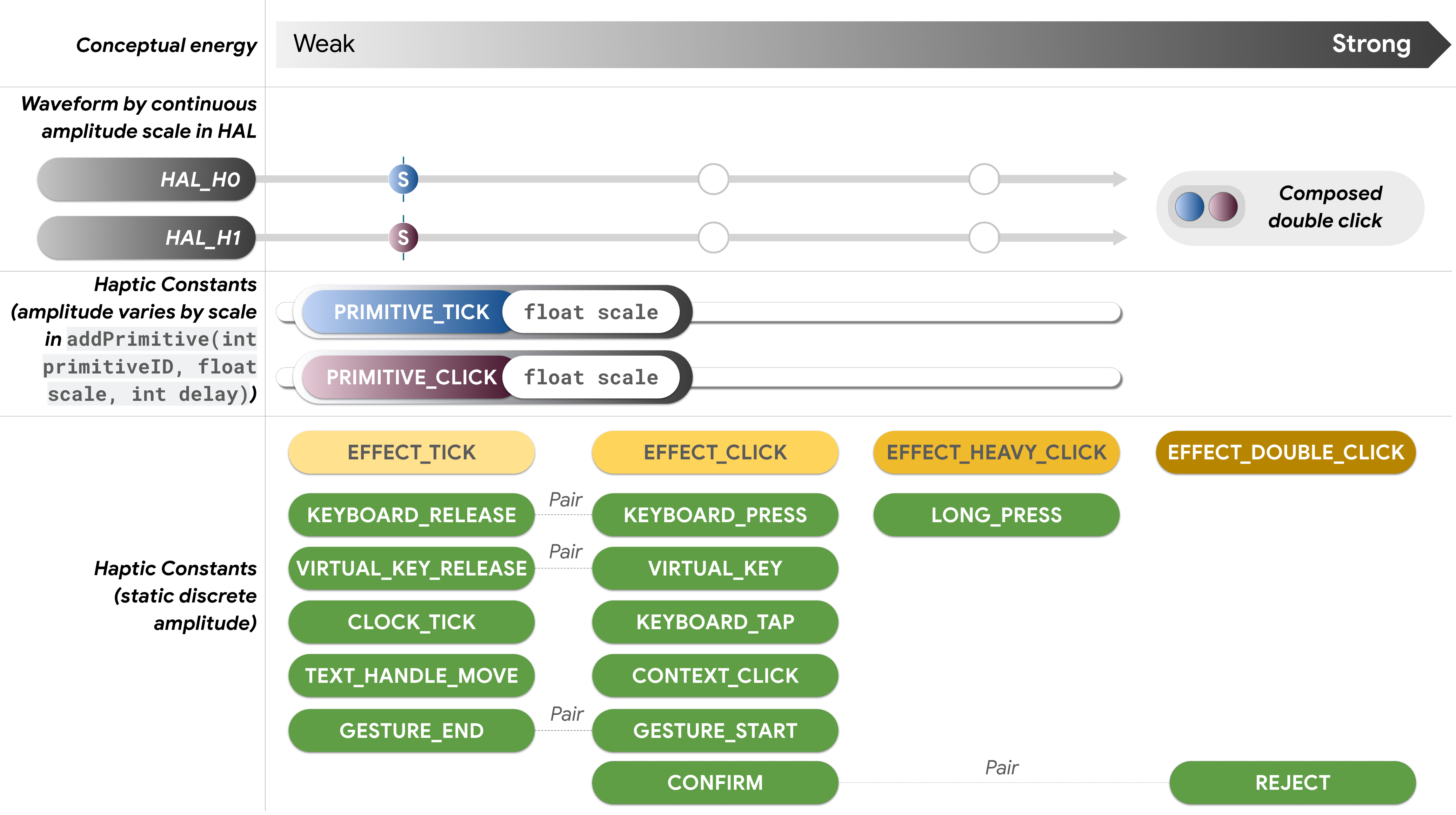

圖 17. HAL-API 常數對應：連續模式
在連續模型中，不同的 HAL 常數代表不同的觸覺紋理，而非不同的振幅；縮放比例 (S) 可設定振幅。不過，由於紋理感知 (例如清晰度) 與時間和振幅感知相關，因此建議在 HAL API 對應的設計過程中，結合紋理和縮放比例。

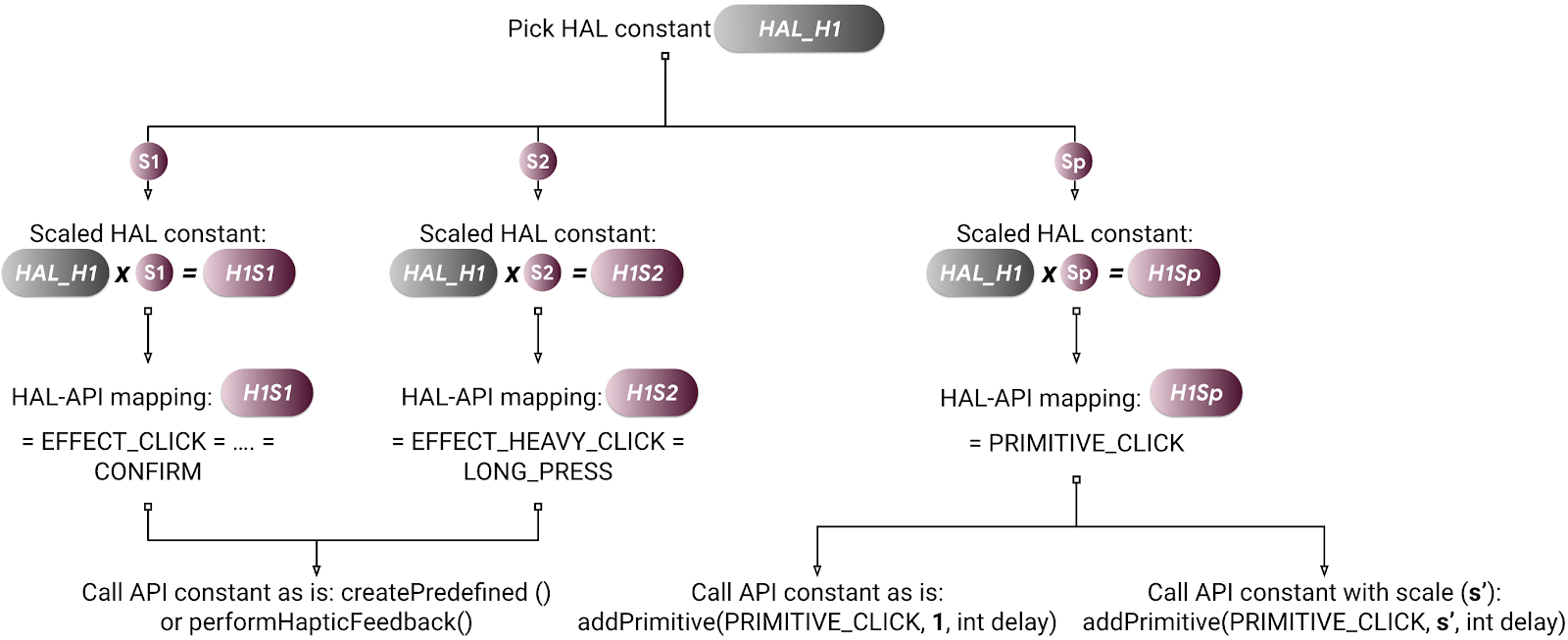

圖 18 說明常數對應，從一個 HAL 到多個 API 常數，並增加振幅可擴展性。
圖 18. 利用振幅擴展功能增加變化
對於所有可調整的 API 常數 (例如 VibrationEffect.Composition 中的 PRIMITIVE_TICK 和 PRIMITIVE_CLICK)，如果 API 常數是透過 addPrimitive(int primitiveID, float scale,
int delay) 宣告，則 API 常數的能量等級會取決於 float scale 參數。PRIMITIVE_TICK 和 PRIMITIVE_CLICK 可使用不同的 HAL 常數進行設計，以便清楚區分。如果您想為紋理新增變化，建議採用這種做法。
