觸覺回饋使用者體驗設計
透過集合功能整理內容
你可以依據偏好儲存及分類內容。
在「在 HAL 和 API 之間對應常數」一文中介紹的 HAL-API 常數對應關係，是根據極力推薦的使用者體驗設計原則所制定。使用者體驗設計原則定義了使用 Android 觸覺回饋 API 時的基礎，包括使用方式、使用時機和使用內容。如要進一步瞭解這些基本原則，請參閱「進階觸覺回饋：新觸覺回饋 API 的使用時機、內容和使用方式」。
圖 1. HAL-API 常數對應：離散模型
選取觸覺技術效果
依觸覺強度 (VibrationEffect)
EFFECT_CLICK 是決定偏好的觸覺回饋強度 (VibrationEffect) 的最佳起點：它是 EFFECT_TICK 的「輕」觸覺回饋和 EFFECT_HEAVY_CLICK 的「重」觸覺回饋之間的中間值。您可以從 EFFECT_CLICK 開始，透過 EFFECT_HEAVY_CLICK 增加強度或 EFFECT_TICK 降低強度，來增加或減少概念能量。請注意，EFFECT_DOUBLE_CLICK 會提供最高的概念能量，因為它是重複的。

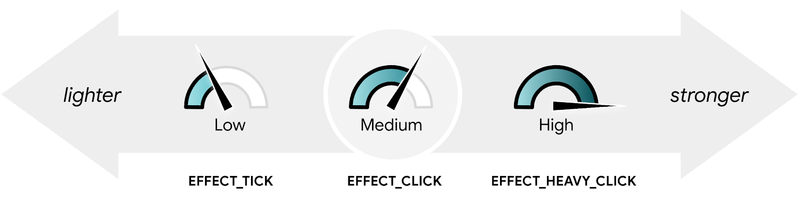

圖 2. 觸覺回饋強度設定
如果您的目標與特定輸入事件 (例如長按或滑動) 或 UI 元素 (例如鍵盤) 相關，請在 HapticFeedbackConstants 中找出預先定義的觸覺回饋常數。每個常數的名稱都代表特定用途，例如 KEYBOARD_PRESS 或 LONG_PRESS。
輸入事件 (虛擬軟體按鈕) 的觸控觸覺回饋功能，可模擬使用實體實體 (例如機械式實體按鈕) 按下按鈕的動作。
輸入事件：成對互動流程
點擊事件旨在模擬機械式按鈕的行為，也就是先「按下」再「放開」。按下按鈕時，機械衝動的感知能量會高於釋放按鈕時。因此，按下按鈕的觸覺回饋會比鬆開按鈕的觸覺回饋更強烈。

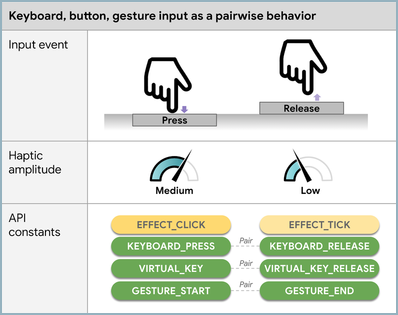

圖 3. 以二進位輸入事件產生的觸覺技術效果
觸覺回饋強度：按下按鈕的操作提示
參與度較短且較輕的輸入事件會與較輕的觸覺回饋相關聯。參與度較長且較深的輸入事件，會與更強烈的觸覺回饋相關聯。

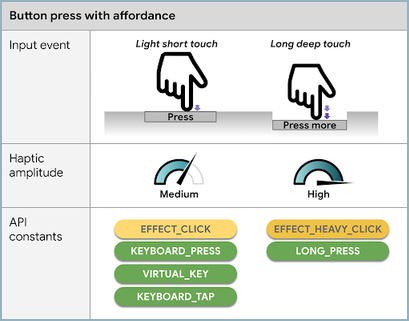

圖 4. 依據操作空間產生的觸覺效果
在手勢輸入事件中模擬虛擬紋理
手勢輸入 (例如快速瀏覽或捲動) 可與虛擬觸覺紋理保持一致，同時在手指在畫面上移動時，搭配使用視覺 UI，例如在手指在時鐘 UI 中移動時，產生重複的觸覺回饋，並搭配使用虛擬勾號 UI 元素。
虛擬觸覺觸感紋理的效果是為了重複使用。這通常會讓感知能量高於振幅 (當效果不重複或只執行一次時)。因此，針對虛擬觸覺紋理 (例如 CLOCK_TICK 或 TEXT_HANDLE_MOVE) 設計的觸覺常數必須「輕微」，才能透過重複的提示提供移動感。

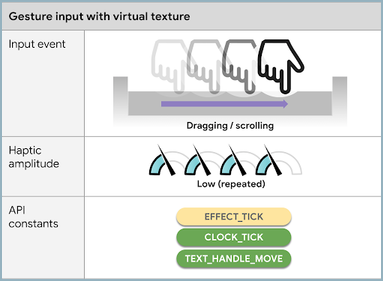

圖 5. 模擬虛擬紋理的觸覺效果
納入情緒
如要在觸覺效果中加入正面或負面情緒，請將更強烈的感覺套用至負面情緒，以吸引使用者的注意。

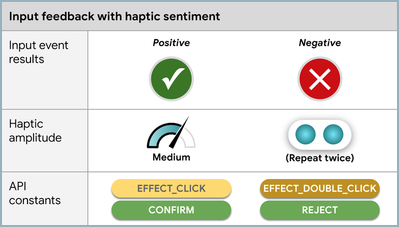

圖 6. 情緒觸覺技術效果
避免長時間震動產生可聽見的噪音
為避免長時間振動造成的聲響，請平順地加速模式，產生漸進效果。請使用 createWaveform(long[] timings, int[] amplitudes, int repeat) 執行此操作。

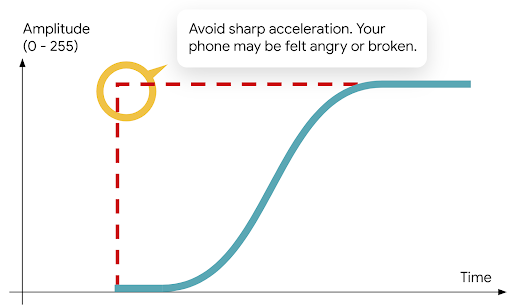

圖 7. 長時間震動漸增效果
