連接並設定測試設備。測試裝置 (DUT) 所需的硬體如下：
- 3 軸式加速度計 (35C-10)
- 3 軸式加速度計電纜
- Vibration Isolation Platform
- 3M CF-40EG 搭配 25.4 公釐厚度的泡棉
- 資料擷取卡 (音訊卡)
- CCLD 信號調節器
- Beeswax：YJ-0216
下圖說明測試系統設定：

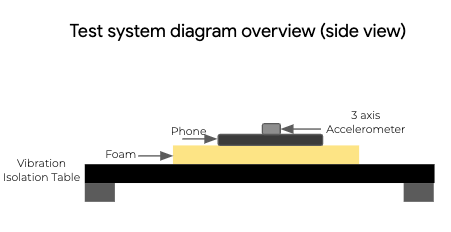

圖 1. 測試系統圖 (側面)

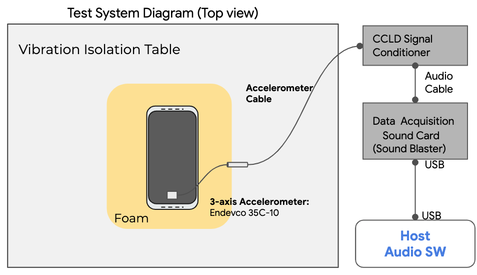

圖 2. 測試系統圖表 (頂端視圖)

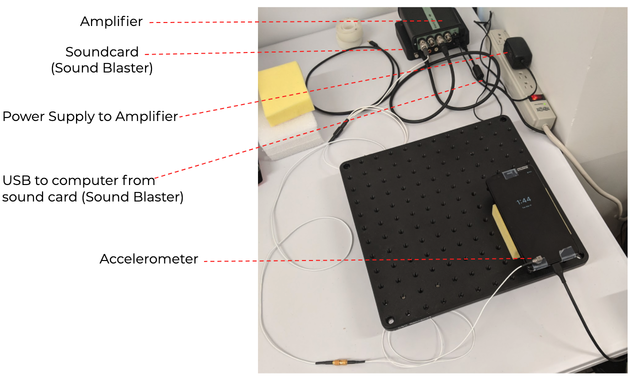

圖 3. 測試系統相片

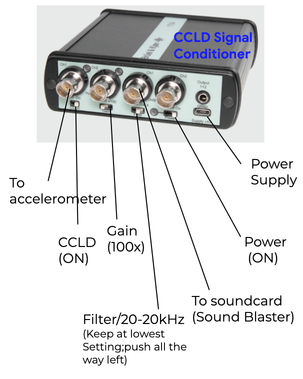

圖 4. CCLD 信號調節器
