テスト機器をセットアップする
コレクションでコンテンツを整理
必要に応じて、コンテンツの保存と分類を行います。
テスト機器の接続と構成。テスト対象デバイス(DUT)のテストが必要なハードウェアは以下のとおりです。
以下の図はテストシステムのセットアップを示しています。

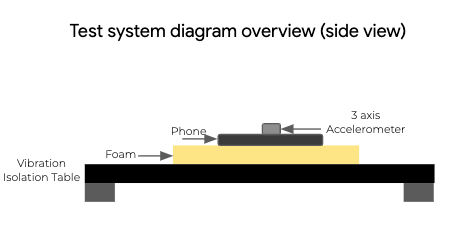

図 1. テストシステムの図(側面図)

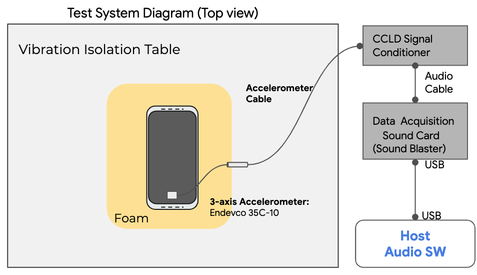

図 2. テストシステムの図(上面)
図 3. テストシステムの写真

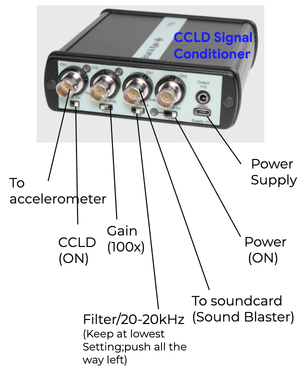

図 4. CCLD シグナル コンディショナー
このページのコンテンツやコードサンプルは、コンテンツ ライセンスに記載のライセンスに従います。Java および OpenJDK は Oracle および関連会社の商標または登録商標です。
最終更新日 2025-03-19 UTC。
[[["わかりやすい","easyToUnderstand","thumb-up"],["問題の解決に役立った","solvedMyProblem","thumb-up"],["その他","otherUp","thumb-up"]],[["必要な情報がない","missingTheInformationINeed","thumb-down"],["複雑すぎる / 手順が多すぎる","tooComplicatedTooManySteps","thumb-down"],["最新ではない","outOfDate","thumb-down"],["翻訳に関する問題","translationIssue","thumb-down"],["サンプル / コードに問題がある","samplesCodeIssue","thumb-down"],["その他","otherDown","thumb-down"]],["最終更新日 2025-03-19 UTC。"],[],[],null,["# Set up the testing equipment\n\nConnect and configure the testing equipment. The hardware required to test the\ndevice under test (DUT) is:\n\n- [3-axis accelerometer (35C-10)](https://buy.endevco.com/accelerometer/35c-accelerometer-3)\n- [3-axis accelerometer cable](https://buy.endevco.com/cables/3027am3-cable)\n- [Vibration isolation platform](https://www.newport.com/p/M-VIP100-1218-0010)\n- [3M CF-40EG with 25.4 mm thickness foam](https://www.digikey.com/product-detail/en/3m-aearo-technologies-llc/CF-40EG-PSA-1.0-SQUARE-PAD/CF-40EG-PSA1.0SQUAREPAD-ND/7067542)\n- [Data acquisition card (sound card)](https://us.creative.com/p/sound-cards/sound-blaster-digital-music-premium-hd)\n- [CCLD signal conditioner](https://www.bksv.com/en/products/transducers/conditioning/ccld/1704-A-002)\n- [Beeswax: YJ-0216](https://www.bksv.com/en/products/transducers/vibration/accessories/adhesives/YJ-0216)\n\nThe following figures illustrate the test system setup:\n\n**Figure 1.** Test system diagram (side view)\n\n**Figure 2.** Test system diagram (top view)\n\n**Figure 3.** Test system photograph\n\n**Figure 4.** CCLD signal conditioner"]]
