连接并配置测试设备。测试被测设备 (DUT) 所需的硬件如下：
下图展示了测试系统设置：

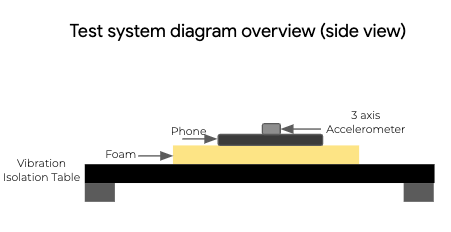

图 1. 测试系统示意图（侧视图）

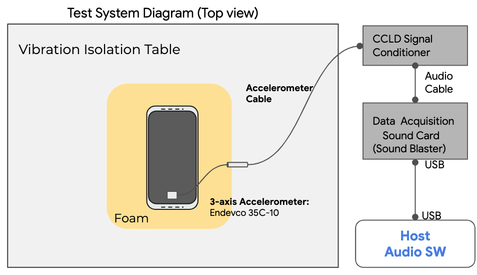

图 2. 测试系统示意图（俯视图）

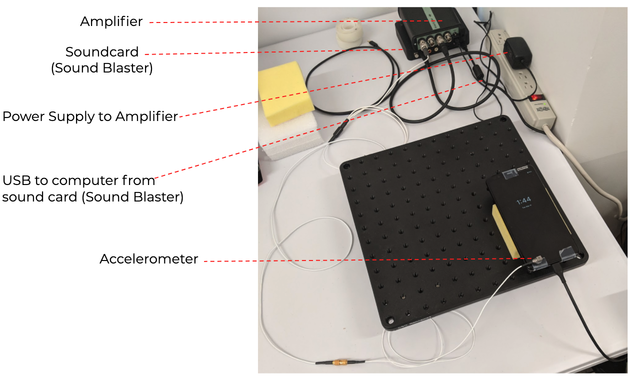

图 3. 测试系统照片

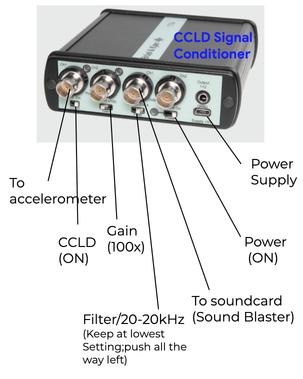

图 4. CCLD 信号调节器
设置测试设备
本页面上的内容和代码示例受内容许可部分所述许可的限制。Java 和 OpenJDK 是 Oracle 和/或其关联公司的注册商标。
最后更新时间 (UTC)：2025-03-21。
[[["易于理解","easyToUnderstand","thumb-up"],["解决了我的问题","solvedMyProblem","thumb-up"],["其他","otherUp","thumb-up"]],[["没有我需要的信息","missingTheInformationINeed","thumb-down"],["太复杂/步骤太多","tooComplicatedTooManySteps","thumb-down"],["内容需要更新","outOfDate","thumb-down"],["翻译问题","translationIssue","thumb-down"],["示例/代码问题","samplesCodeIssue","thumb-down"],["其他","otherDown","thumb-down"]],["最后更新时间 (UTC)：2025-03-21。"],[],[],null,["# Set up the testing equipment\n\nConnect and configure the testing equipment. The hardware required to test the\ndevice under test (DUT) is:\n\n- [3-axis accelerometer (35C-10)](https://buy.endevco.com/accelerometer/35c-accelerometer-3)\n- [3-axis accelerometer cable](https://buy.endevco.com/cables/3027am3-cable)\n- [Vibration isolation platform](https://www.newport.com/p/M-VIP100-1218-0010)\n- [3M CF-40EG with 25.4 mm thickness foam](https://www.digikey.com/product-detail/en/3m-aearo-technologies-llc/CF-40EG-PSA-1.0-SQUARE-PAD/CF-40EG-PSA1.0SQUAREPAD-ND/7067542)\n- [Data acquisition card (sound card)](https://us.creative.com/p/sound-cards/sound-blaster-digital-music-premium-hd)\n- [CCLD signal conditioner](https://www.bksv.com/en/products/transducers/conditioning/ccld/1704-A-002)\n- [Beeswax: YJ-0216](https://www.bksv.com/en/products/transducers/vibration/accessories/adhesives/YJ-0216)\n\nThe following figures illustrate the test system setup:\n\n**Figure 1.** Test system diagram (side view)\n\n**Figure 2.** Test system diagram (top view)\n\n**Figure 3.** Test system photograph\n\n**Figure 4.** CCLD signal conditioner"]]
